S-197 - 2 Piece Replacement Rotors

Front

This is the weight of the 14" front OEM rotor

S-197 14" Street/Strip version

FT 9108

This is our latest design in reduced weight and improved looks, 2 pc front rotors for 2007-2011 GT500's and 2011 Mustang GT's with 14" Brembo brake package. These rotors have Hardcoated aluminum hats with plated grade 8 attaching hardware. The rotors are directionally vaned, slotted, stress relieved and clear zinc plated for a nice lasting appearance.

The weight savings are as follows:

Front OEM rotors weigh 25.32 lbs each. Our rotor weighs 19.8 lbs for a weight savings of 5.52 lbs each and a total front weight savings of 11.04 lbs for the pair. This is a typical weight savings you find in a moderately priced pair of lightweight wheels that cost about what these rotors cost.  So with the addition of a pair of lightweight wheels you could easily remove 20 lbs of unsprung parasitic rotating mass off of the heavy front end of a GT500 and possibly as much as 30 lbs if you put on a much lighter and higher priced wheel.

These front rotors are recommended only for street and strip duty.

S-197 Street / Strip Front rotor pair sells for $675.00 plus freight.

FT 9108

Replacement rotor rings are Stress Relieved, Slotted and Clear Zinc Plated; $213.50 each.

S-197 14" Heavy Duty/Road Race version

FT 9108 HD

We've finally received our newest addition to our rotor line. The heavy duty road race version of our S-197 14" front 2pc rotors.

These rotors are actually heavier walled than the OEM Brembos. The braking faces on these new rotors average .367" thick with a center air gap of .515". The Brembos have average braking face thickness of .335" and air gap of .585". Our rotors are directionally vaned and will pump more cooling air than the non-directional OEM Brembos.

Here is a photo of the front of the rotor showing the rotor weight of 23.88# a 1.44# weight savings over the 25.32# OEM Brembo. Total weight savings for two rotors would be 2.88#.

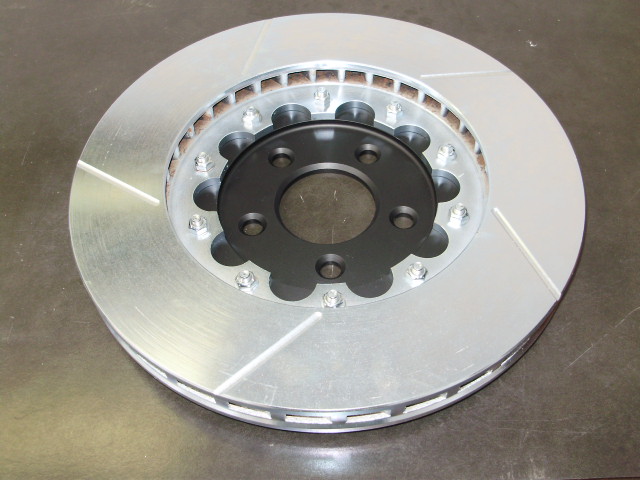

S-197 14" Heavy Duty Road Race Pair	Backside of rotor assembly

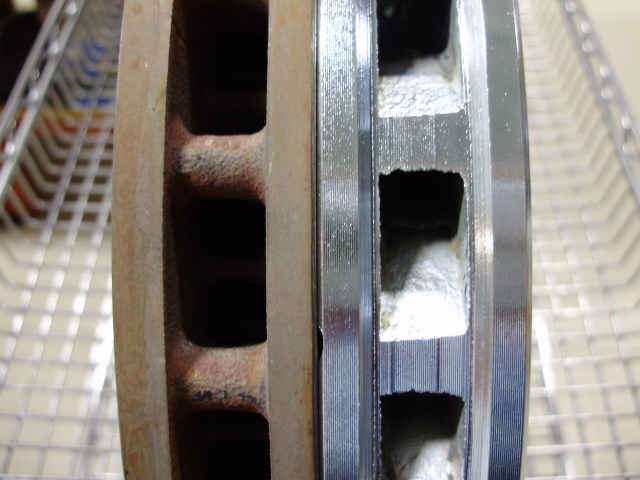

Here is a thickness and air gap side by side comparison of the OEM brembo and the FTBR road race HD version

The Heavy Duty / Road Race Front rotor pair sells for $675.00 plus freight.

FT 9108 HD

Replacement rotor rings are Stress Relieved, Slotted and Clear Zinc Plated; $213.50 each.

We also offer S-197 Front Brake Cooling Ducts

S-197 Front Brake Cooling Ducts (Pair)
FT 9200               $149.00

Rear

This is the weight of the Rear OEM rotor

The rear OEM rotor weighs 13 lbs each. Our rotors weigh 10.56 lbs for a weight savings of 2.44 lbs each and a total rear weight savings of 4.88 lbs for the pair.

Rear rotor pair sells for $595.00 plus freight.

FT 9109

Replacement rotor rings are as follows:

11.8" Rear Rings: Slotted and Clear Zinc Plated; $115.00 each.

Rotors mounted on car:

We also offer a tool for compressing fixed front caliper pistons.

FT 9000          $15.00
