Cross-axis joints

We now offer cross-axis joints for rear knuckles, individually (tools sold separately) or in sets of four with removal/installation tools included.

CROSS AXIS JOINT

(click to enlarge)

CROSS AXIS JOINT TOOL SET

(click to enlarge)

Cross Axis Joint for

 Rear Knuckle

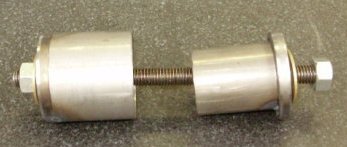

Cross Axis Joint Removal/Installation Tools

Part #  FT 6100

Part #  6110

CROSS AXIS JOINT SET WITH TOOLS

(click to enlarge)

Set of 4 Cross Axis Joints

 with the Removal/Installation Tools

Part #  FT 6120



Removal of OEM cross-axis joint retaining ring.



With an external retaining ring pliers, spread the retaining ring,

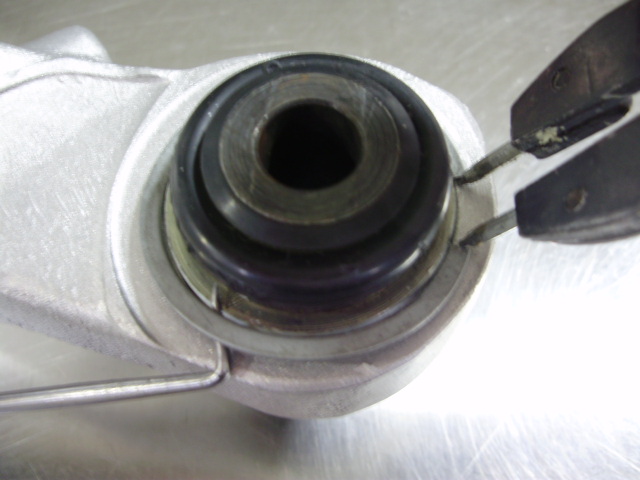

and lift with a small pick or small screwdriver as shown in photo below:



cross axis retaining ring removal

(click to enlarge)



Once retaining ring is removed, slip small removal cup over the boot on the retaining ring side of the cross-axis joint.

Use the large removal cup as the receiver on the flanged side.

Be sure to make note of the flange location when removing OEM joint and install the replacement joint in the same orientation.

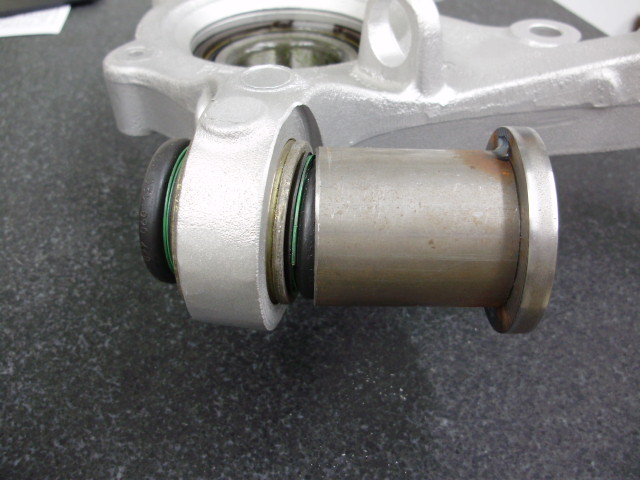

small removal cup

(click to enlarge)



Removal Cup

(click to enlarge)

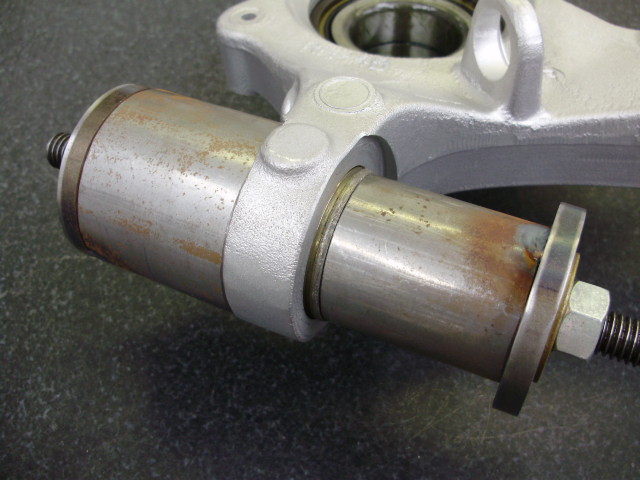

remove joint

(click to enlarge)



remove joint

(click to enlarge)



Once the cross-axis joint is removed, clean bore with scotch bright or steel wool.

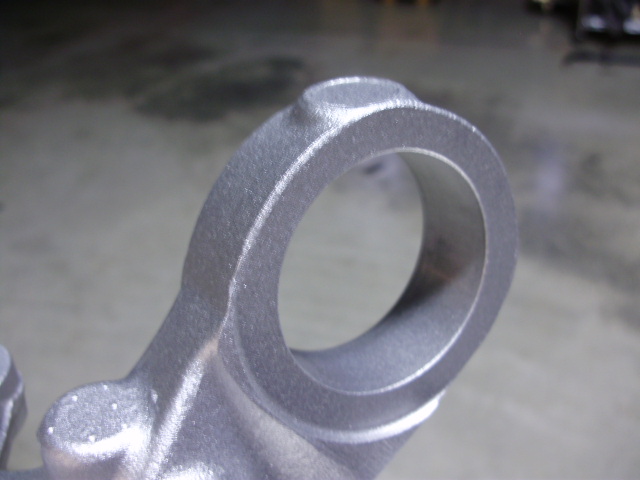

clean bore

(click to enlarge)

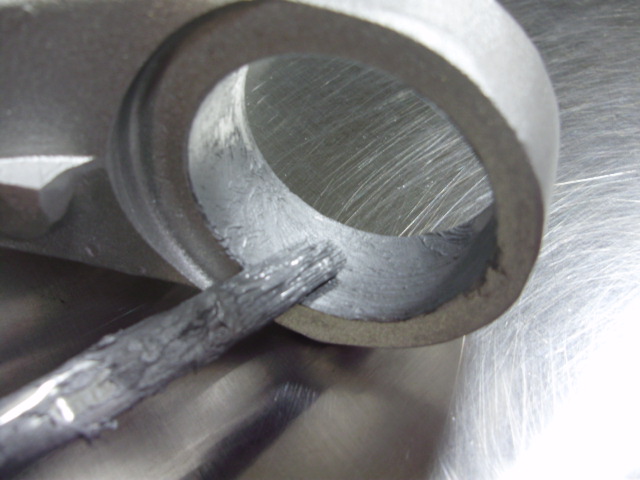

Then apply never seize to the bore and the O.D. of the new cross-axis joint.



apply never sieze

(click to enlarge)



Start the new joint in the bore as straight as possible, use the small cup on the flanged side and the large cup on the receiving side.

Slowly tighten nuts to press joint into the knuckle. The joint may tilt slightly when first starting to press it into the bore, but will straighten itself out as it gets deeper into the bore.



If you have access to a hydraulic press, use the cups and eliminate the threaded rod.

The joint can then be pressed into the bore without lubrication.

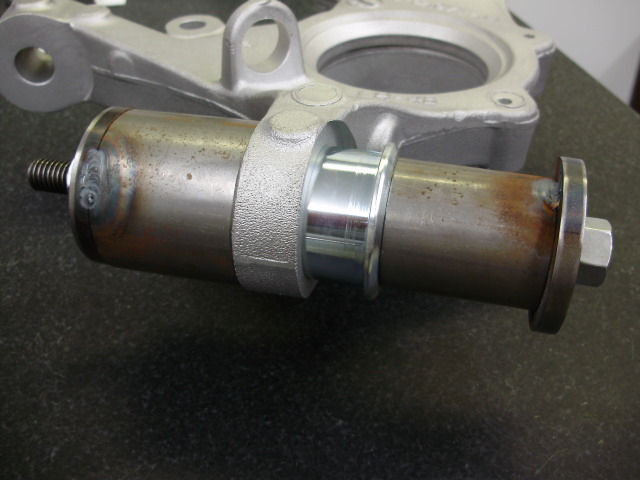

press

(click to enlarge)



Press joint in until flange is tight against knuckle.



press flange tight

(click to enlarge)

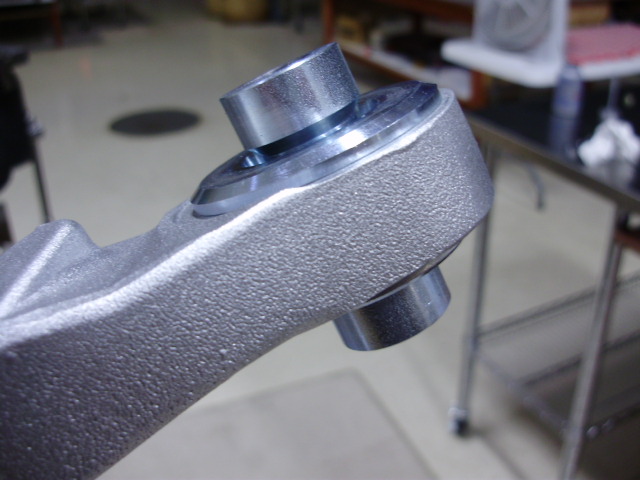

seated cross axis joint

(click to enlarge)



Once joint is seated, install retaining ring with medium duty external retaining ring pliers.

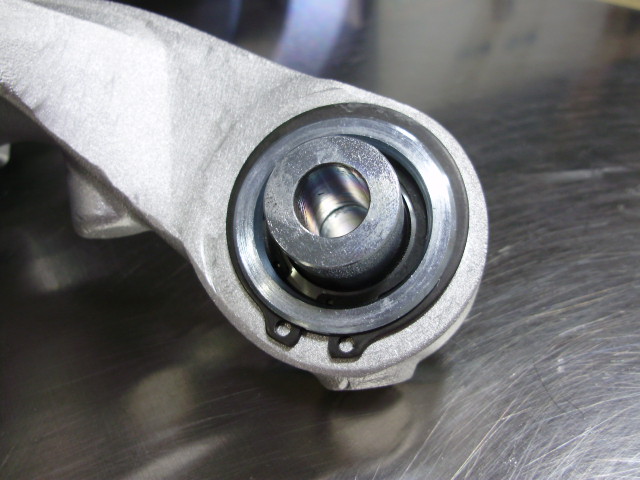

install snap ring

(click to enlarge)
