Full Tilt Boogie Racing is introducing our own SN95 Torque Brace.
This brace creates a solid connection between the
front differential bushing mount and the subframe,
that will result in a stiffer IRS assembly.
99-04 Mustang Cobra


Now Available!
FT 1291 $139.00


Watch for our newest improvement to the S550 Mustang!

NOW AVAILABLE!!
Click here to purchase.
Here is the Full Tilt Boogie Racing S550 Mustang shifter reinforcement bracket.
Like every other FTBR part these are 100% USA made.
The bracket can easily be installed without the removal of the exhaust or driveshaft.
Before the bracket we were encountering 3 to 4 lockout at high RPM.
With the bracket, it is a world of difference!
The shifter feels more solid with no slop and smooth shifting at any RPM or load.
Here is a short video that demonstrates the shifter wobble
before and after the bracket has been installed.
Please contact us with any questions you may have.

New SN-95 Cross Axis joint design with protective boots.

FT 6150 - Cross Axis Joint with protective boots FT 6170 - Set of 4 Cross Axis Joints with protective boots including the removal/installation tool kit
Cross Axis Joint
with protective boots for
Rear Knuckle
99-04 Mustang Cobra
SET OF 4
Cross Axis Joints
with protective boots including the Removal/Installation tool set.
FT 6150 $85.00 FT 6170 $339.00

SN-95 and S550 Brake Cooling Ducts

FT 9215 - S550 Brake Cooling Ducts, Pair FT 9215 Kit

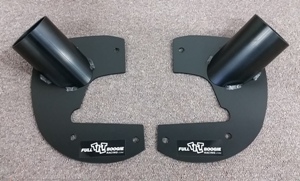

S550 Front Brake Cooling Ducts (Pair)
(click here to order)
Click here for more info!

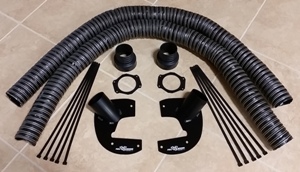

S550 Front Brake Cooling Duct Kit
(click here to order)
Click here for more info!
FT 9215 $159.00 FT 9215 Kit $265.00

SN-95 Brake Cooling Ducts. (Pair)
(The duct openings are oval in shape and configured
to direct air flow to the center of the rotor
and not on the inside face.)
These will not fit the 94-95 spindles.
(click here to order)
FT 9295 $149.00

S550 Mustang Coolant Reservoir Cover

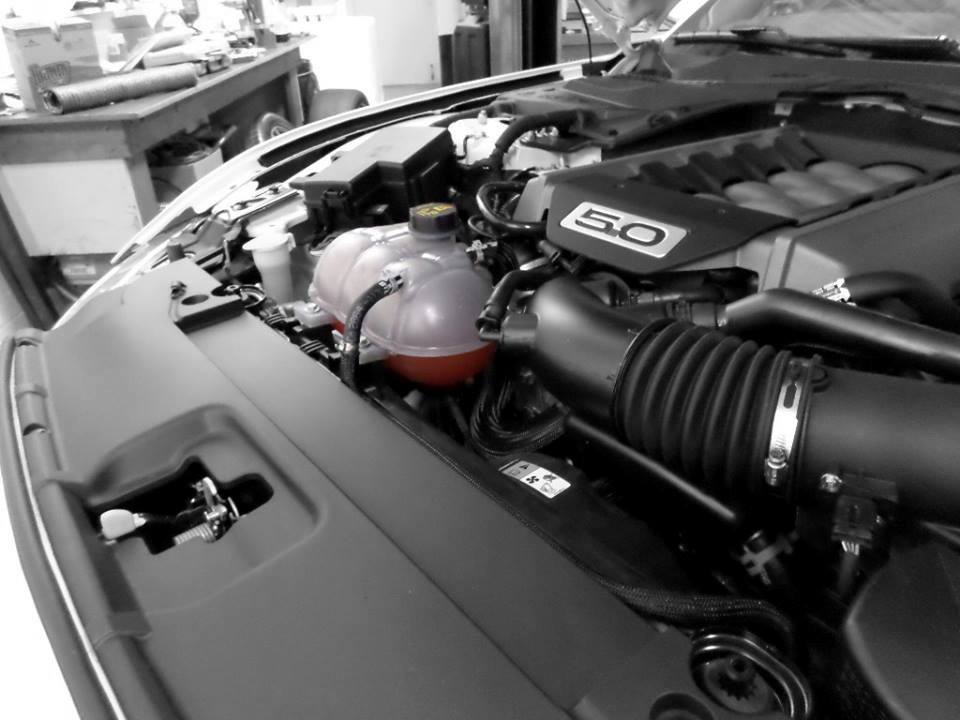

Stock

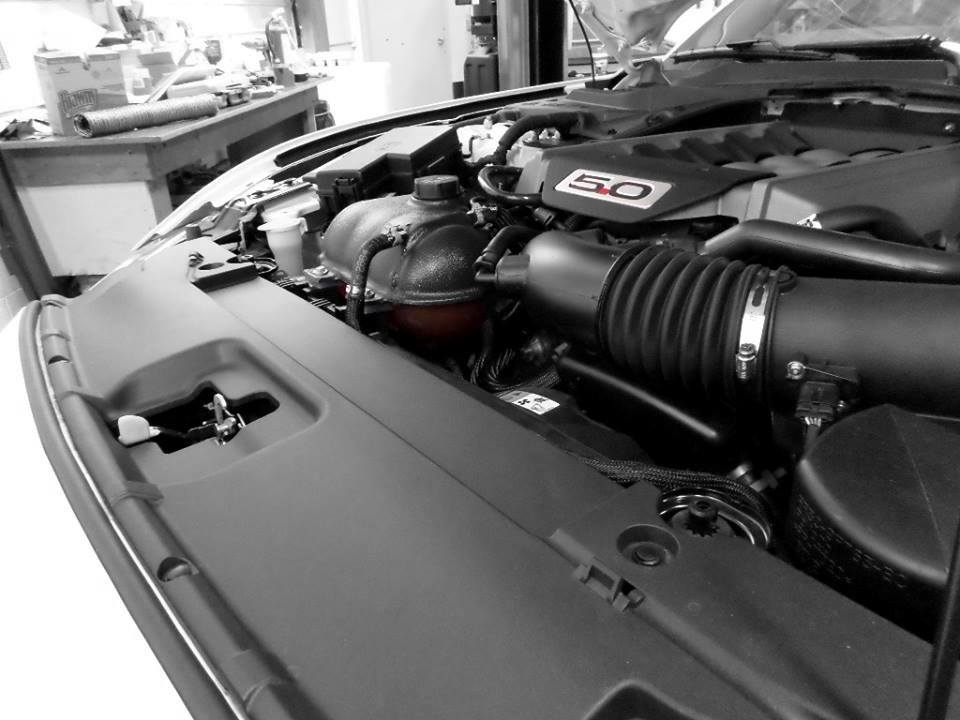

With Cover
We have come up with a low cost solution for the eye sore of the OEM coolant reservoir
and we think it
dramatically changes the look under the hood.
Available now on our website.
(here)
They retail for $55
Easy to install,
Still able to see coolant level,
Retains the factory look,
No need to mess with coolant when installing.

2015 S550 Mustang IRS Parts now available!

Here are a couple of videos that show what is happening with the IRS
during launch with the factory OEM rubber bushings installed.

2015 S550 Mustang
IRS Wheel Hop
2015 S550 Mustang
Subframe and Differential
Deflection During Launch

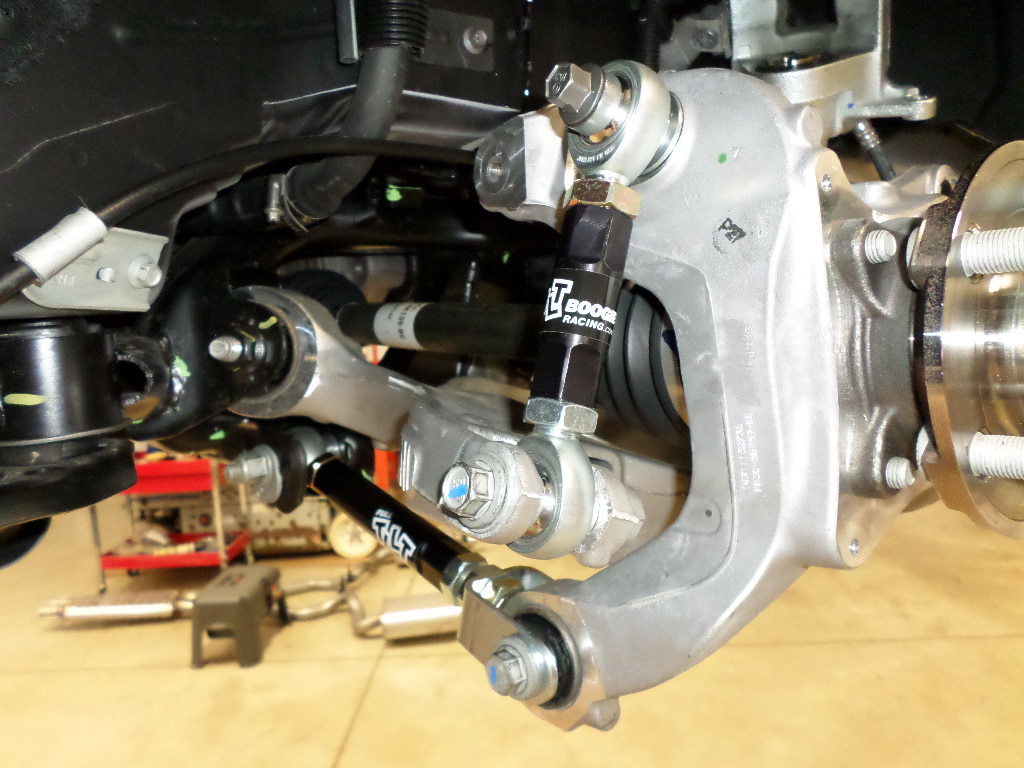

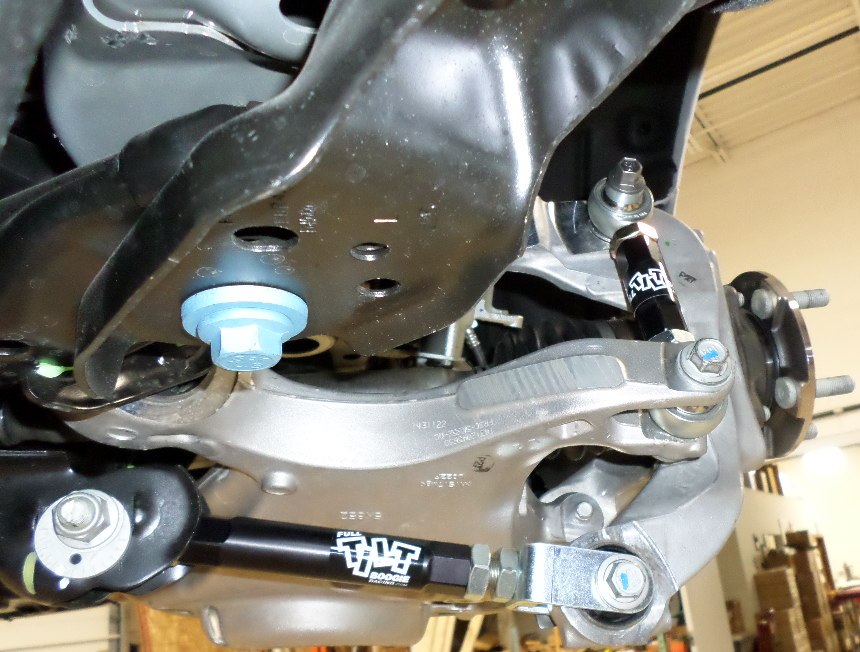

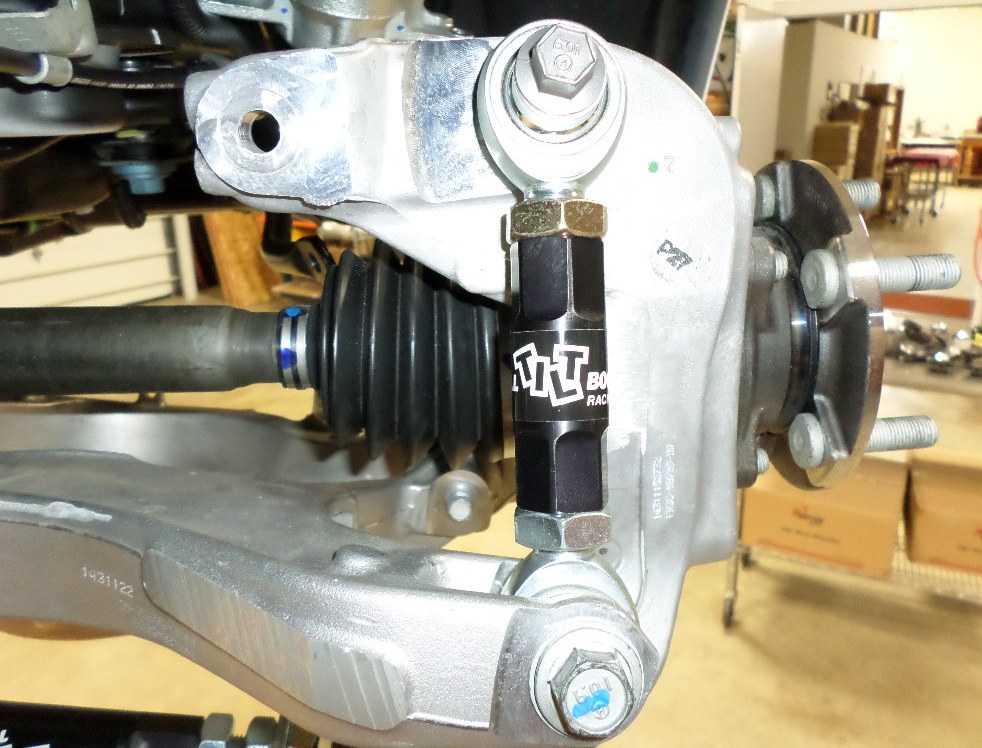

Rear Adjustable Toe Link and
Adjustable Vertical Link
Rear Adjustable Toe Link

Rear Adjustable Vertical Link Rear Adjustable Toe Link and
Adjustable Vertical Link

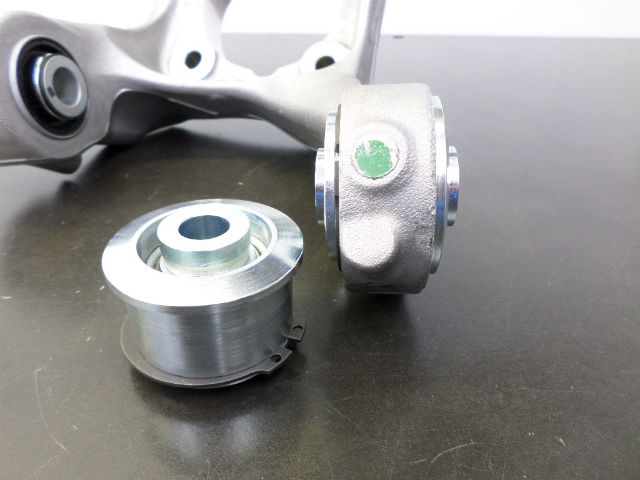

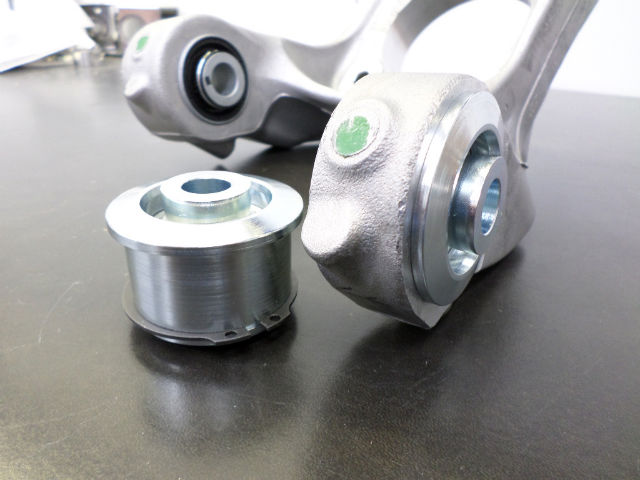

LCA and Knuckle

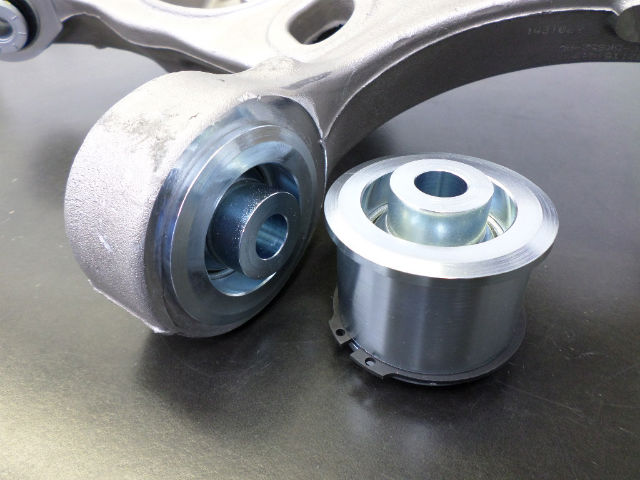

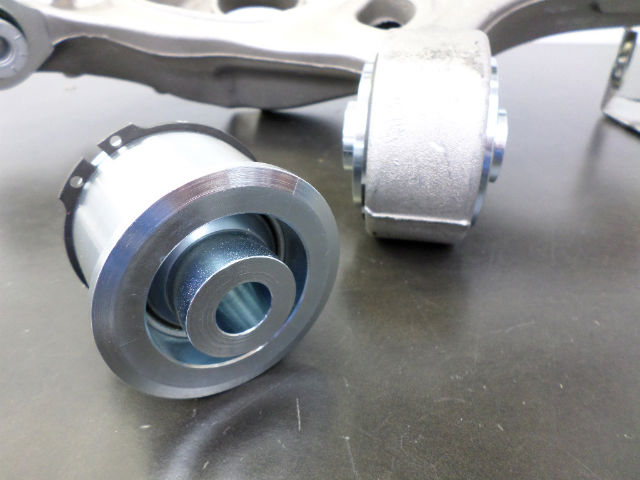

 LCA Spherical Bearing LCA Spherical Bearing

Knuckle Spherical Bearing Knuckle Spherical Bearing

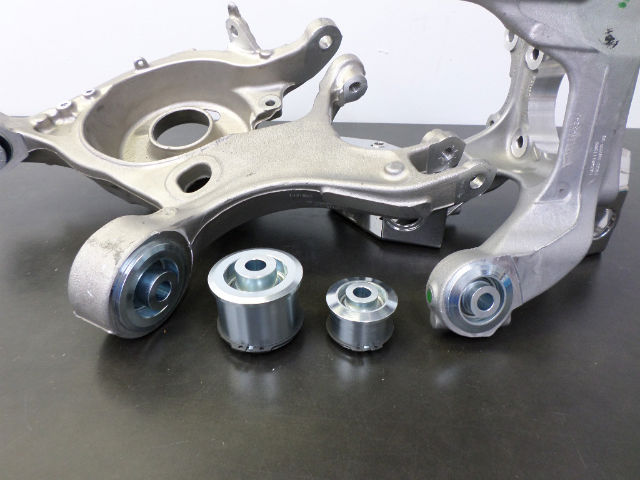

2015 S550 Mustang IRS
Lower Control Arm, Knuckle, Adjustable Vertical Link,
Adjustable Toe Link and Upper Control Arm


Rear Differential cooling accessories

FT 1370 - Rear Diff Cooler Kit
Rear differential cooler kit.
Kit includes a heat exchanger/fan assembly with -8 fittings,
Tilton oil pump,
15 feet of -8 stainless braided line,
three 90 degree -8 fittings,
seven straight -8 fittings,
one 90 degree swivel for the suction line,
one AN-8 check valve,
one 280 degree temperature gauge with sending unit.
FT 1370  $749.00

Options for the FT 1370 differential cooling kit

FT 1380 - Wiring harness with relays and on/off switches  FT 1381 - In-line strainer for differential cooler kit
Wiring harness with relays and on/off switches
for differential cooler kit.
In-line strainer
for differential cooler kit.
FT 1380  $49.00  FT 1381  $95.00
FT 1382 - Differential breather catch can  FT 1401M - Modded rear diff lowering bracket

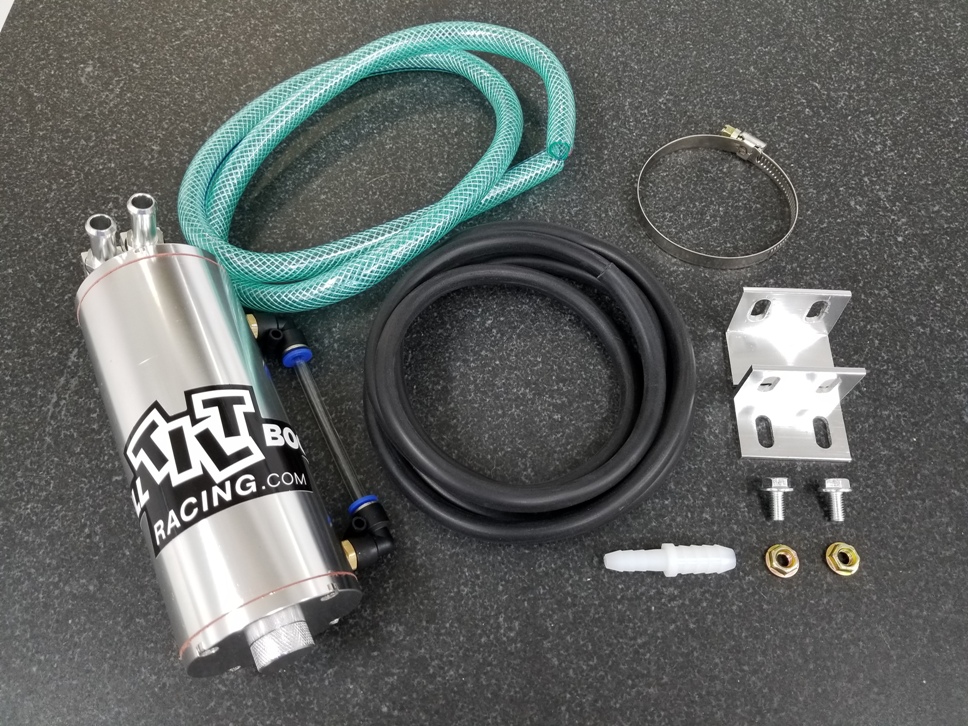

Differential breather catch can. Delrin isolated

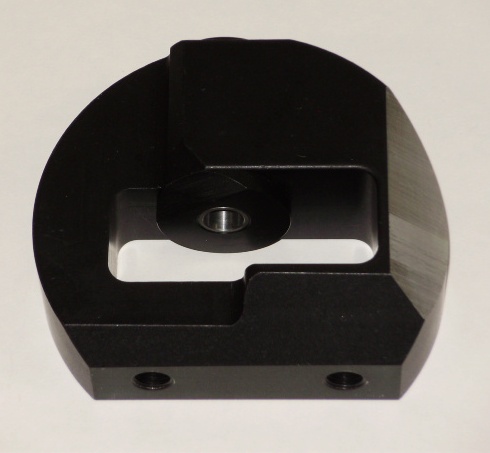

Rear differential lowering mount
modded for diff cooler kit
FT 1382  $29.00  FT 1401M $189.00
Diff cover plumbing
Differential cover plumbing with
modded FT 1401M solid diff mount

Rear Differential Rebuild Parts

M-4209-88410 M-4209-88373 M-4209-88355
Ford Racing 8.8 Gear Set
4.10 Gear Ratio
Ford Racing 8.8 Gear Set
3.73 Gear Ratio
Ford Racing 8.8 Gear Set
3.55 Gear Ratio
M-4209-88410 $179.00 M-4209-88373 $179.00 M-4209-88355 $179.00

M-4210-B2 M-4413-A M-4700-C
Ford Racing
8.8 Ring and Pinion Bearing
and Seal Install Kit
Ford Racing
8.8 IRS Halfshaft Bearing
and Seal Kit
Ford Racing
Carbon Fiber
Clutch Rebuild Kit
M-4210-B2 $99.00  M-4413-A $19.00 M-4700-C   $129.00

M-4204-T31 M-4204-T31H
Ford Racing Mustang
8.8 T2 Torsen Differential
31 Spline
Differential with
Ford Racing
Carbon Fiber Clutches
Ford Racing Mustang
8.8 T2-R Torsen Differential
31 Spline
M-4204-T31 $575.00 AR3Z-4026-A $249.00 M-4204-T31H $695.00


Full Tilt Boogie Racing is now a Mustang Brake Parts Dealer Just wanted to give everyone a heads up regarding
a new line we are taking on at FTBR.

We are now a brake parts distrubutor.

We can get almost all brands of pads, rotors, brake fluid etc.
If you have part numbers, all the better.

E-mail us with your requirements and we will give you a smokin' deal.
The more you order, the better deal we can give you.

No obligation!

So if you want two sets of fronts and a set of rears you're going to get the best pricing you've most likely ever seen.

We know what it's like being a track dawg and saving 10% or 20%.
We'd love to be your brake supplier.

Thanks in advance!

The Full Tilt Boogie Racing Team


SN-95 Rotors

FT 8300 - SN-95 Front Rotors FT 8350 - SN-95 Rear Rotors
SN-95 13" Front Rotor Set
SP Performance
Directionally Vaned and Slotted
Zinc Plated
1994 - 2004
SN-95 11.66" Rear Rotor Set
SP Performance
Directionally Slotted
Zinc Plated
1994 - 2004
FT 8300 $210.00 FT 8350 $172.00


New Items

FT 9750 FT 9010
 Russell four piece
front and rear
stainless steel braided
brake line set.
S-197 (05-14) Mustang
Universal general purpose rear caliper
piston retraction tool
FT 9750 $210.00 FT 9010 $44.95


Brembo Replacement Floating Rotor Rings

355mm x 32mm Front Replacement Floating Rotor Rings

FT 9400 HD Weight FT 9400 Weight FT 9400 LW Weight
Weight of the Heavy Duty version
14" Brembo Replacement
Floating Rotor Rings
17.3 Lbs.
Weight of the
14" Brembo Replacement
Floating Rotor Rings
15.7 Lbs.
(GiroDisc)
Weight of the Lightweight version
14" Brembo Replacement
Floating Rotor Rings
14.18 Lbs.
FT 9400 HD Ring Set FT 9400 Ring Set FT 9400 LW Ring Set
Brembo Replacement Spec Sheet FT 9400
This is a replacement 355mm x 32mm floating rotor ring that fits Brembo kits for many vehicles.
The 48 vane Brembo rotor rings weigh approx. 16 lbs.
We have a choice of slightly heavier or slightly lighter weight rotors.
These rotors will fit applications including, but not limited to:
 Mustang's, Camaro's, Corvette's, Subaru's, Porsche's, BMW's, Mitsubishi's...ect.
Check spec sheet above to see if they match your application.

FT 9400 HD GiroDisc Rotor Ring Set with attaching Hardware  FT 9400 HD
14" Brembo Replacement
Floating Rotor Ring Set
Heavy Duty
14" Brembo Replacement
Floating Rotor Ring Set,
Includes mounting hardware.
(GiroDisc)
14" Brembo Replacement
Floating Rotor Ring Set
Lightweight
FT 9400 HD
Ring Set
$575.00 FT 9400
Ring Set
$600.00  FT 9400 LW
Ring Set
$450.00


S-197 13" Rear Brake Conversion
Two piece floating rotors

Our S-917 13" rear brake conversion kit, part number FT 9600 was developed to replace the inadequate
and undersized rear brakes of S-197 cars (Mustangs 2005-2014) equipped with Brembo 14" front brakes.
If you are doing track days with your car, please be aware
that your car has the same 11.8" rear brakes that came on a V-6 automatic Mustang.
Even if you are not doing track days you will appreciate the additional
stopping power this kit will provide for you and your vehicle.
This kit was originally developed on a 2007 Shelby GT 500 that came with those same undersized rear brakes.
A vehicle's front brakes should be doing about 70-80% of the braking.
These 14" Brembo equipped cars are doing about 85-90% of the braking with the front brakes.
That is not a good balance. This kit relocates the OEM rear caliper
to accommodate a larger 13" diameter rotor and increases the rear braking leverage significantly.
There is no need to change the rear brake lines
and you retain your emergency brake as well because the calipers are not being changed,
only relocated. Unlike some other 13" rear brake conversion kits on the market,
this kit is a direct bolt on with no need to disassemble the differential and pull the axles.
The increased braking leverage in the rear will settle your car much better in hard braking situations.
Because your OEM rear brakes are so undersized, there is no need for a brake bias adjuster after the installation of this kit.
As a bonus, our 2 pc 13" floating rotors weigh 11.53# each compared to the 13# OEM 11.8" rotors.
This saves almost 3# of unsprung weight and rotating mass.
This kit puts your front and rear brake bias at a much more desirable and balanced level like it should have come from Ford.

S-197 Complete 13" Conversion Floating Rotor Kit S-197 13" Floating Conversion Replacement Rotor Ring Set
S-197 13" Rear Brake Conversion Kit
Two piece floating rotors.
FT 9600
S-197 13" Rear Brake Conversion
Replacement Rotor Ring Set.
FT 9600 Ring Set

S-197 13" Rear Floating Rotor Weight FT 9600 mounted on car
S-197 13" Rear Floating Brake Conversion
Rotor Weight....11.54lbs.

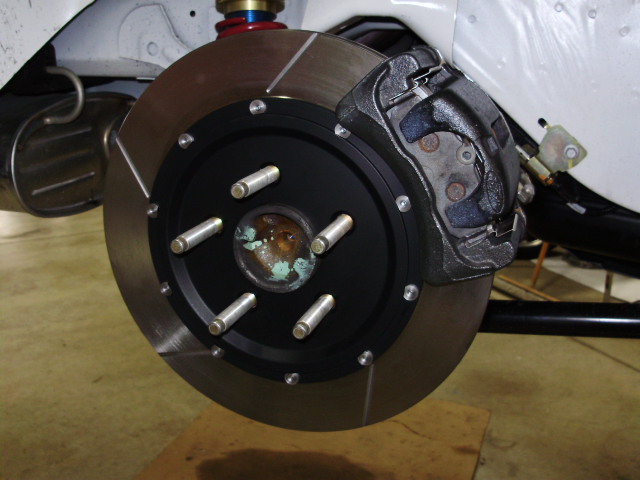

FT 9600 Kit mounted on car.
S-197 13" Conversion caliper bracket grind S-197 13" Conversion caliper bracket grind

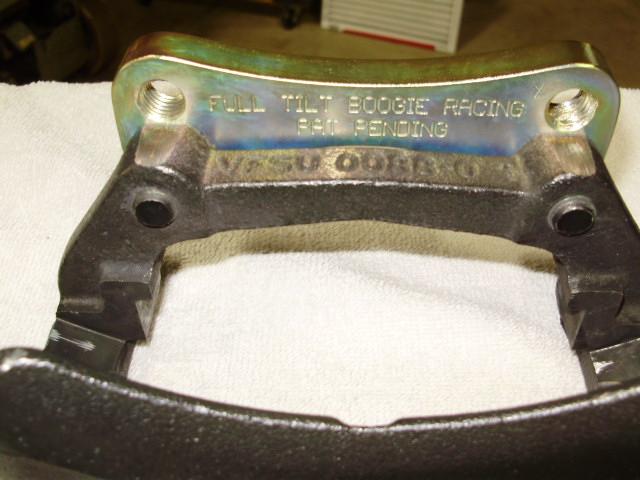

The caliper bracket needs
to be ground for bolt clearance.

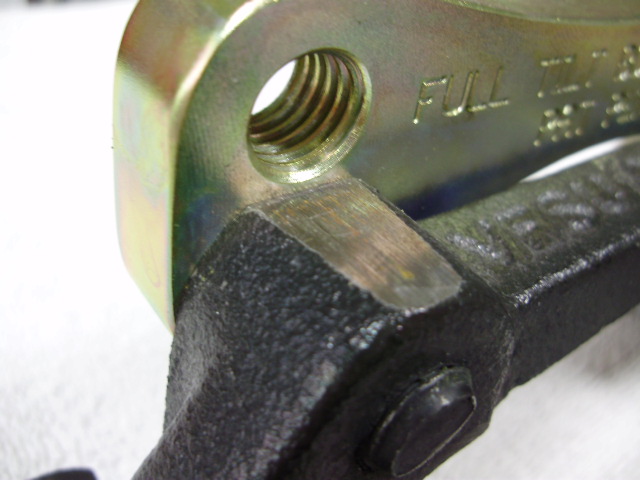

A closer view.

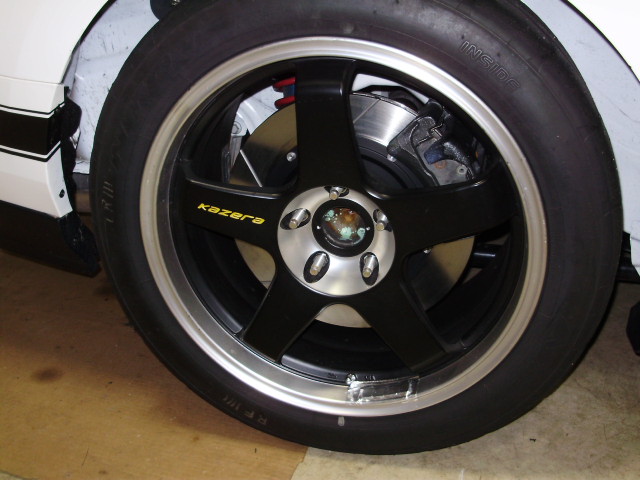

FT 9600 13" Rear Brake
 Conversion Kit Mounted on the car.

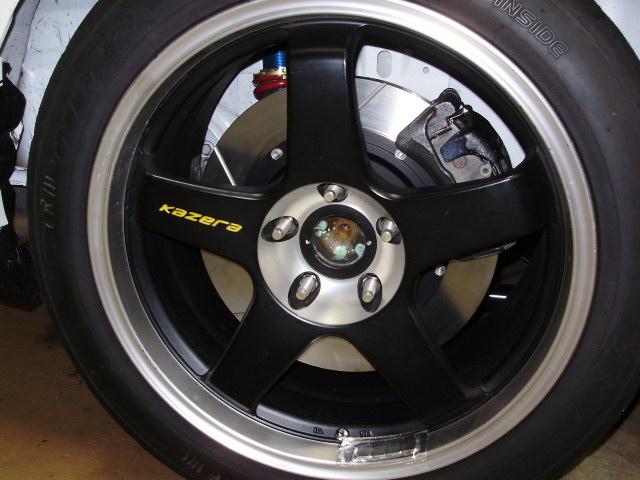

A closer view of the FT 9600 13" Rear Brake
Conversion Kit Mounted on the car.

IRS eccentric camber adjusting bolt

OEM eccentric camber adjustment bolt FT 1050 FTBR eccentric camber adjusting bolt Side by side comparison

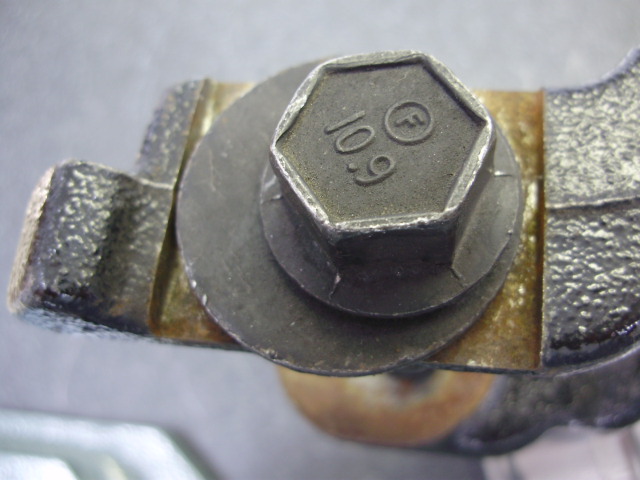

OEM camber adjusting bolt in the
upper control arm, notice the
washer does not fill the entire milled
 width in the control arm.
Full Tilt Boogie Racing's new replacement
 IRS camber adjusting bolt fills the entire milled width of the upper control arm for increased camber adjustment.

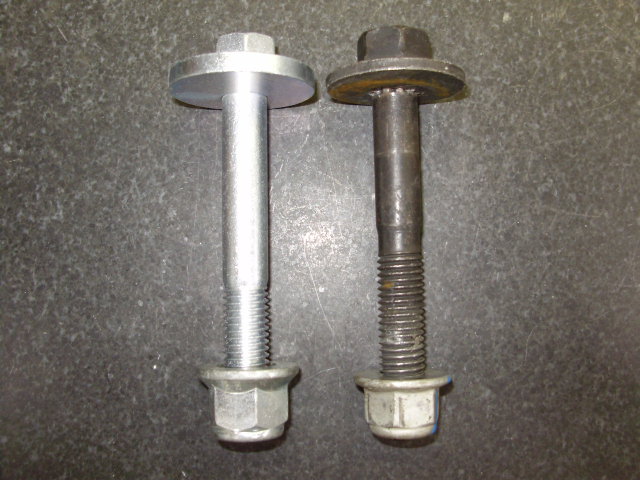

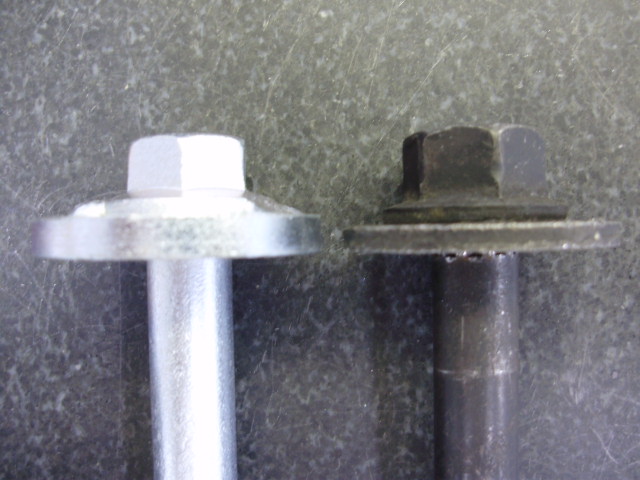

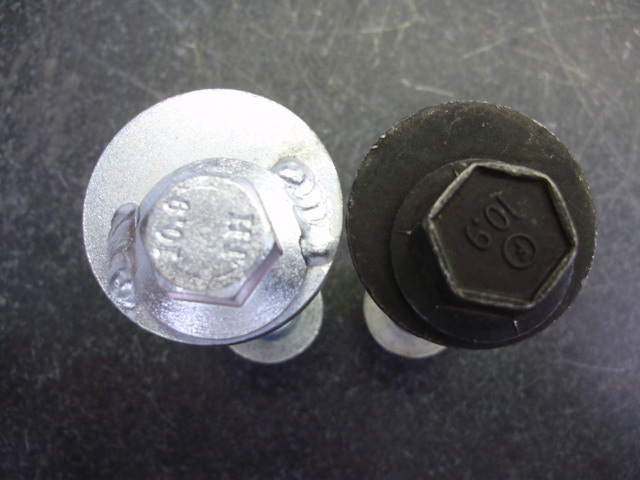

FTBR vs OEM eccentric camber
adjusting bolts side by side. Note increased eccentric washer thickness.

eccentric washer   eccentric washer thickness
This photo shows the increased offset
of the eccentric washer
on the upper control arm.
Elongating the bolt slot on the UCA
will give you increased
camber adjustment.
This is the amount of material that
needs to be removed from both ends
of both slots of the UCA
to take full advantage
of increased camber adjustments
with this new eccentric
camber adjusting bolt.

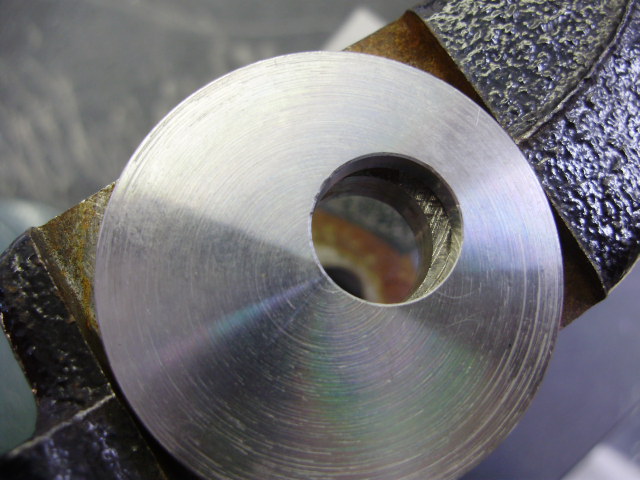

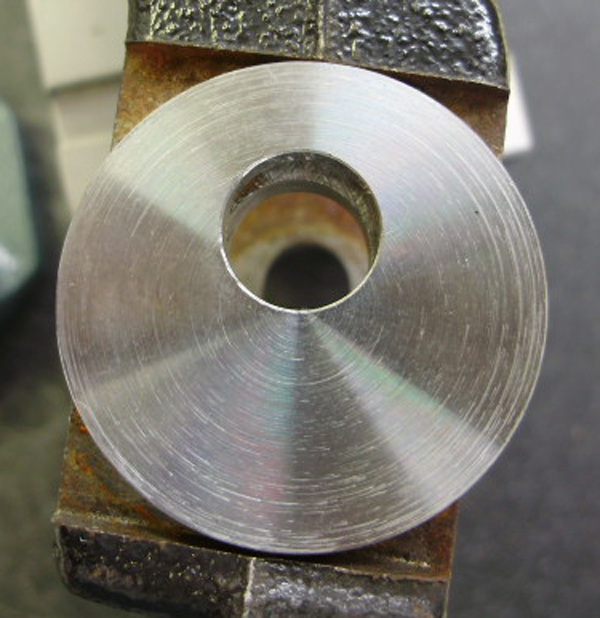

This photo shows the increased
thickness of the eccentric cam as
compared to the OEM part.

FT 1050....FTBR eccentric camber adjusting bolt....$18.50 each

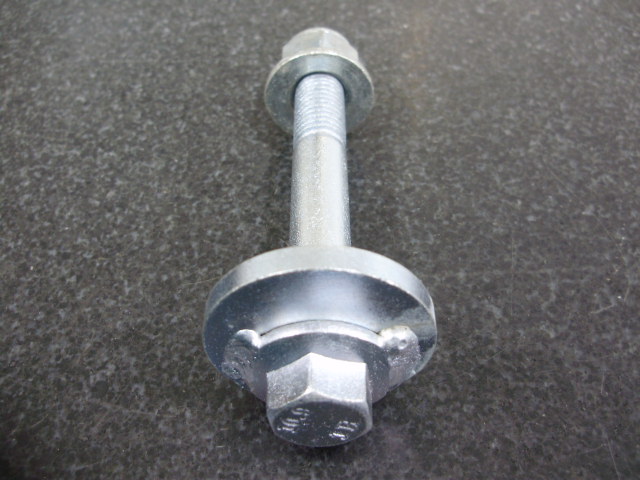

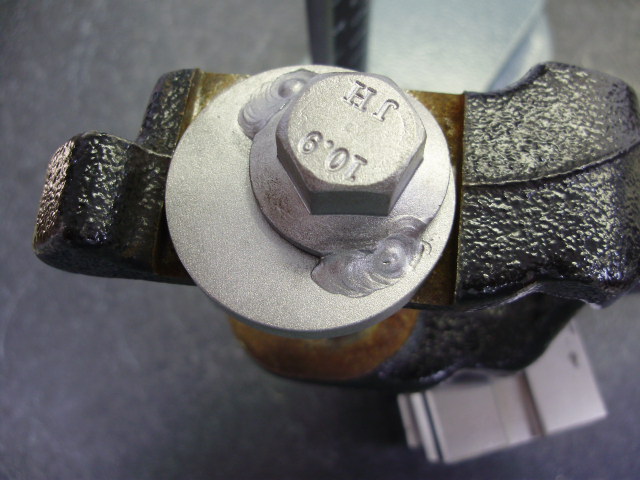

  The bolt on the FTBR
eccentric camber adjusting bolt,
is welded to the eccentric washer
and cannot slip as in some cases
with the OEM part.
The assembly is clear zinc plated
to help prevent corrosion.
Part #FT 1050

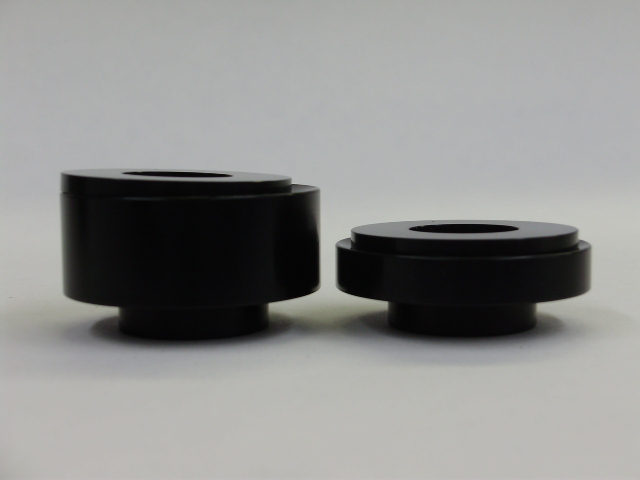

Front Differential Mounts

We've come to the realization that adjusting our old design
front diff mounting bushings was a tedious and time consuming process.

So we went back to the drawing board to improve the design
and this is what we've come up with.

A set of front diff supports that are actually self aligning.

There is no longer a need to orientate the tapered bushings and tapered washers
to match your mounting surfaces.

Simply bolt them in place and they pretty much self center themselves!
Here are some photos of the new bushing design. This is how they self adjust to the mounting surfaces of the subframe and the front torque brace from angled to completely flat.

Here is the front diff set mounted in the car. And a close-up of them mounted in the car.

Because these parts are so much easier to work with
and we've always been a very customer oriented company,
we are going to offer a trade-in exchange for all of our previous customers that have purchased these.
For the guys that have NOT installed their kit yet,
go into your kit and remove all of the parts in the front diff mount set with the exception of the 12 shimming washers. You keep them. Send us the two thick and two thin angled bushings and four angled washers.
Once we receive your returned parts and verify you purchased the parts from us,
we will ship you the new bushings and seats along with some new front diff mount installation instructions
AT "NO" CHARGE!!! :-D


For the guys that have already installed these parts in their cars
you probably discovered this alignment process was a little more work than it should have been.
You're probably not looking forward to having to do it again if you ever have to take your car apart.
We're going to do something for you as well.

You can purchase just the eight required parts, four new bushings and four matching washers
(you won't receive any shimming washers) for $40.00 + $5.00 freight.
Keep them until you go back into your differential again.

Once you remove and return the eight angled parts
(four bushings and four washers) you will receive a $40 refund.

If anyone has any questions, contact us at:
info@fulltiltboogieracing.com
I'd be glad to answer them.

Delrin Isolated Rear Diff Mount
This has been a LONG time in development but we have finally seen the fruits of our labor.
As many of you may or may not know,
the rear differential mount kit we currently offer will allow our customers
the ability to vastly improve their driveline angles.

Although we have had very few complaints from customers with issues pertaining to drive line vibe,
we still felt it was important to offer a kit that allows total and complete optimization
of the driveline angles without the need to modify the subframe in any way.

This is our newly revised aluminum Delrin isolated rear differential lowering mount
that will fit the Ford OEM differential cover, but will also fit
new milled FT 1350M Ford Racing rear differential cover.
Here is the bracket mounted onto a milled FT 1350M Ford Racing rear diff cover.
(See milled cover below)

The Delrin will isolate NVH from transferring from the differential housing to the subframe.

Part #  FT 1401


New Ford Racing Reinforced IRS Rear Differential cover

Full Tilt Boogie Racing now offers the new Ford Racing IRS reinforced rear diff cover.

This newly designed cover eliminates the need to install a rear differential cover brace.

Ford Racing IRS diff cover - Part #  FT 1350


Milled for clearance Ford Racing Diff Cover
MILLED COVER LEFT SIDE CLEARANCE FT 1350M.....MILLED FORD RACING DIFF COVER MILLED COVER RIGHT SIDE CLEARANCE
Left side clearance Milled Ford Racing Diff Cover Right side clearance
If you're using the FT 1401 combined with the Ford Racing diff cover
 you will run into some clearance issues with the inner toe link mounting brackets on the subframe.

We now offer a machined Ford Racing cover FT 1350M
which is specifically milled to install in the subframe without any clearance issues.

Click here for more info: http://www.fulltiltboogieracing.com/faqs.htm, or here: Milled Cover


Milled Ford Racing IRS diff cover - Part #  FT 1350M

New S-197 Adjustable Aluminum Panhard Bar

FT 910.....S-197 PANHARD BAR
S-197 Panhard Bar  -  Part #  FT 910

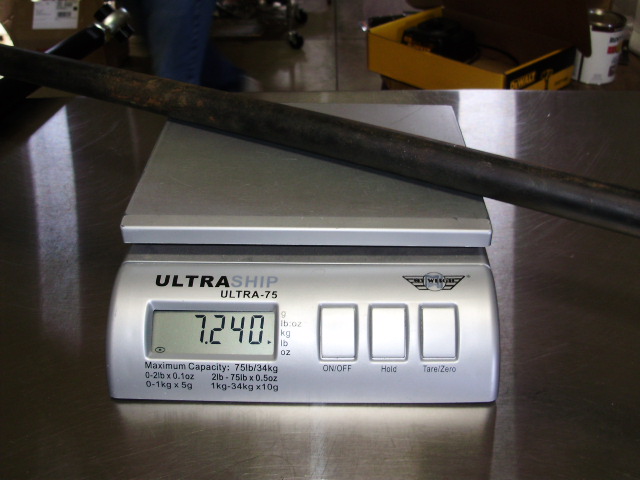

Here is the OEM Panhard bar.
7.2 Lbs.

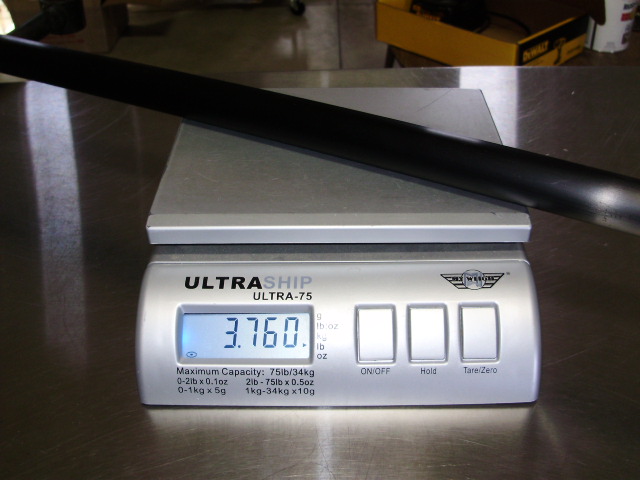

Here is the FTBR
reduced weight panhard bar.
3.7 Lbs.

Back to the top......
